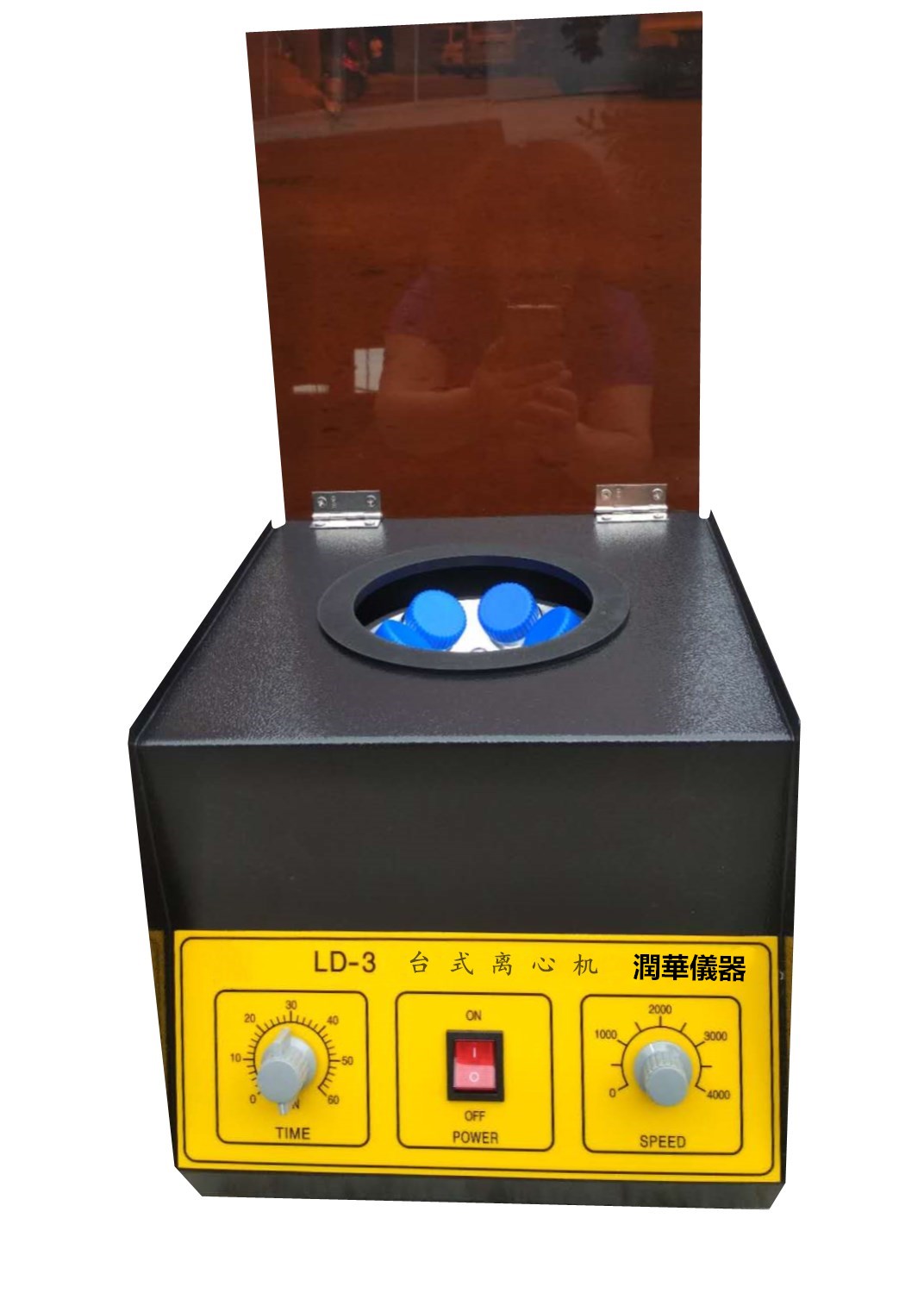

LD-3臺式離心機簡介

The tabe-centrifugal machines are widely used in the laboratory or produce department for organisms、medical、chemisry etc. The lower speed

電動離心機廣泛應用于實驗室：生物、醫療、化學、科研院校、醫藥和生產部門低速臺式Centrifugal machine with the maximum speed 4000r/min and be equipped with/without timer. It mainly be used for the appraisal radiorctivity immunity and separate cell or particle .低速低速離心機的^高轉速4000r/min和配備有/無定時器。它主要用于放射免疫和分離細胞和大質點，帶有不銹鋼內膽更安全，噪音更小。

2/SPECIFICATION:

一）離心機LD-3技術指標：

電源：220V50Hz

^高轉速：5000/min   （速度控制為無極調速）

容    量：50mlx6     定時范圍：0-60分鐘

^大離心力: 3800xg    外形尺寸：500*420*330mm

噪      音：≤  75db

重      量：25kg

moder Maximum speed capacity Maximum relative

3/SAFETY WARNING:

二）安全警告：

After you open the power switch, please shut the power supply and make an examination if the indicatoris not light Do not operate the machine the machine without rotor . When you are going to operate the machine, you should make the rotor is not corroded/hurt. Do not open the cover of the machine and touch the rotor when the rotor when the rotor is in moving. Do not operate the machine if the rotor is not balance assembled。

工作前應均勻放入空心管，將機器開之^高速運行1-2分鐘，發現無異常才可工作，不要在陽光直射的地方使用，要有良好的接地措施，切勿將本機靠近高溫發熱體旁邊，嚴禁機器運轉時移動，不可強力撞擊，嚴禁在未裝轉子的情況下空載運行，工作前檢查運行轉子是否腐蝕，當轉子運行時不可接觸正在運行的轉子，嚴禁轉子在裝載不平衡的情況下運轉。

4/OPERATION

三）操作

put the machine on a level and strong table and keep the working room clear 、dry and ventilated .indoor temperture5-32℃ is ok Open the power supply and make sure the indicator lamp is light .Shut the power switch. Open the cover of the machin, clear the rotor and container. Put the test tube (with same weight) into the machine .put down the cover of the machine .Adjust the timer as your requirement. Open the power switch. Adsjust the governor as you reqirement. Before you are going to stop the work, you should adjust the governor to “0”fist, and then shut the power supply .Clean the container and rotor, then put down the cover。

把機器放在一個水平的表面工作，房間清潔、干燥、通風。室內溫度5-32℃為宜，打開電源，調節調速旋鈕，開始工作。

5/SAFEGUARD AND MAINTAIN:

四）保障和維護：

Do not put anything on the cover. After using, please clean the rotor and container, and put down the cover to keep the pollutant out If the machine have not been used for a long time ,please open the cover and dry the container before you are going to use again. If the carbon brush of the motor have been over 3000 hours, please change the brush avoid hurt of conmutator . if the machine have been used for a long time natural weal and tear is normal our products are one yoer warrant and we can continue give you a good after-sale service after one year。

不要把任何東西放在蓋內。使用后，請清潔轉子和容器，如果機器沒有被使用了很長一段時間，請打開蓋子，放在干燥處，自然磨損屬于正?，F(xiàn)象，我們的產品一年內免費保修終身維護，本企業將不斷提供更優質的服務。

We can supply the machine with customer’s special specification .And price to be negotiated .For inquiry, please contact with our head-office and branch-office。
